INOVA 6.18
- 暂无更多图片。

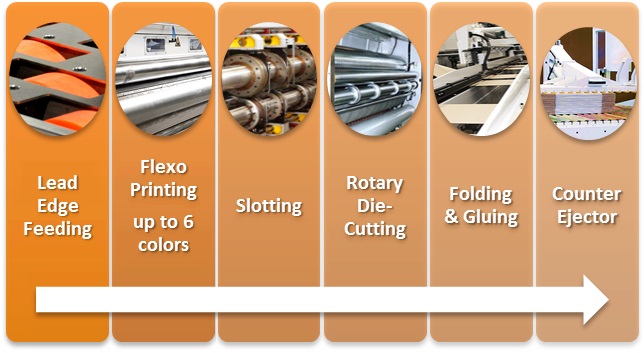

Lead Edge Feeder
- Sectional suction individual adjust to suit various board width
- Motorized left/right side gauge move
- Motorized left/right feed gate move
Printer
- Motorized register with digital
- Motorized print cylinder lateral move
- Anilox roll auto idle running when printing stop to avoid ink stain
- Foot switch for easy mounting the flexo plate
Slotter
- Dual shaft type slot
- Motorized setup all box dimension
- Robust yoked creaser and slotter heads
Rotary Die Cutter
- Motorized die-cutting gap adjust with digital
- Motorized die-cutting cylinder lateral move
- Anvil cylinder lateral oscilitating move
- Anvil grinding and anvil speed compensation
Gluing Unit
- VALCO glue spraying adhesive system
Folder Gluer
- Fully automatic process. Stable and precise
- Vacuum transport belt
- Independent forming belt drives
- Motorized adjusting gauging rollers
Top Counter Ejector
- Friction-free top stacking minimizes fish tailing
- Reliable stacking on Diecut and Outside Glue boxes
- Perfect counting at high speed
- Servo-driven system for precise bundle control
INOVA 6.18 Flexo Folder Gluer (Top print)
Metric
US / Imperial
Processed materials *
Corrugated board
1.2 to 8 mm
3/64 to 5/16 in
Corrugated flute type
E, B, C, A, EF, EB, BC, AC, AB
Capability
Sheet size width
470 to 1800 mm
18 1/2 to 70 7/8 in
Speed
max
21000 b/h
21000 b/h
Slotting blade thickness
6.35 mm
1/4 in
Printing
Printing size width
max
1750 mm
68 7/8 in
Print cylinder circumference
707 mm
27 13/16 in
Sheet sizes
Sheet length "L"
470 to 1800 mm
18 1/2 to 70 7/8 in
Total length of panels "H"
max
1770 mm
69 11/16 in
Sheet width "l"
200 to 635 mm
7 7/8 to 25 in
Small panel "A=C"
110 to 775 mm
4 5/16 to 30 1/2 in
Large panel "B=D"
110 to 775 mm
4 5/16 to 30 1/2 in
Half-box "B+C"
220 to 885 mm
8 5/8 to 34 13/16 in
Slotting length "E"
max
277.5 mm
10 15/16 in
Box height "F"
min
80 mm
3 1/8 in
Lap width "P"
25 to 40 mm
1 to 1 9/16 in
Unfolded sheet
max
1600 mm
63 in
Dimensions & weight
Length **
19.1 m
63 ft
Width
5.65 m
19 ft
Height
3.3 m
11 ft
Net weight **
40000 kg
88200 lbs
Installation
Electrical connected load **
165 KVA
165 KVA
* Processed materials may vary with material property.
** The estimates are base on an example of machine composition : 4CSD+FG
