INOVA 16.28
Main Console
- Windows base CNC control system
- Remote maintenance.
- Huge order saving.
- Trouble-shooting.
- Optimized order memory.
- Production and order management.
- Available to connect with the customer internal ERP.

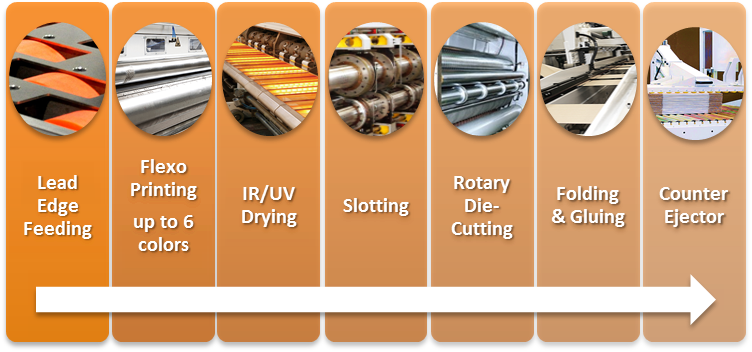

Feeder
- Operation can be controlled by both main console and each unit touch screen.
- Lead-edge feeding, adjustable air control, precious registration
- Precious liner guideway lateral moving
- Motorized side squaring and paper support
- Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss
Printer
- Operation can be controlled by both main console and each unit touch screen.
- Top print, high precious transfer structure with ceramics vacuum transfer wheel, good registration accuracy.
- Quick printing plate mounting, motorized phase zero.
- Ink saving circulate system, safety ink taking, short ink alarm.
- Option: Double doctor blade
Drying
- Operation can be controlled by both main console and each unit touch screen.
- Vacuum transfer, motorized gap adjustment.
- Energy saving dry section, hot air circulating, settable temperature.
- Option: Infrared ray or UV dryers
Slotter
- Operation can be controlled by both main console and each unit touch screen.
- Liner guideway lateral moving device with universal cross joints.
- Pre-creaser, creaser slotting holder motorized gap control.
- Box height motorized control
- Large displacement of middle knife.
Diecutter
- Up die-cutting, clean up scrap thoroughly, motorized die-cutting pressure adjustment.
- Die-cutting roll pneumatic self-locking device, smooth die-cutting.
- Sheet guide roll displacement motorized control, quick order change.
- C.U.E quick change die-cut anvil with grinding mechanism.Precious settable speed difference compensation, ensure die-cutting accuracy.
- Servo driven control
Folder Gluer
- Fully automatic process. Stable and precise
- Vacuum transport belt
- Independent forming belt drives
- Motorized adjusting gauging rollers
Top Counter Ejector
- Friction-free top stacking minimizes fish tailing
- Reliable stacking on Diecut and Outside Glue boxes
- Perfect counting at high speed
- Servo drivers system for precise bundle control
INOVA 16.28 Flexo Folder Gluer (Top print)
Metric
US / Imperial
Processed materials *
Corrugated board
1.4 to 10 mm
1/16 to 25/64 in
Corrugated flute type
E, B, C, A, EF, EB, BC, AC, AB
Capability
Sheet size width
795 to 2845 mm
31 5/16 to 112 in
Speed
max
10800 b/h
10800 b/h
Slotting blade thickness
7.5 mm
5/16 in
Printing
Printing size width
max
2845 mm
112 in
Print cylinder circumference
1676 mm
66 in
Sheet sizes
Sheet length "L"
795 to 2845 mm
31 5/16 to 112 in
Total length of panels "H"
max
2800 mm
110 1/4 in
Sheet width "l"
420 to 1560 mm
16 1/2 to 61 7/16 in
Small panel "A=C"
normal
160 to 1240 mm
6 5/16 to 48 13/16 in
reverse
70 to 1150 mm
2 3/4 to 45 1/4 in
Large panel "B=D"
normal
160 to 1240 mm
6 5/16 to 48 13/16 in
reverse
250 to 1330 mm
9 13/16 to 52 3/8 in
Half-box "B+C"
normal
380 to 1400 mm
15 to 55 1/8 in
reverse
410 to 1400 mm
16 1/8 to 55 1/8 in
Slotting length "E"
max
730 mm
28 3/4 in
Box height "F"
min
100 mm
3 15/16 in
Lap width "P"
35 to 50 mm
1 3/8 to 2 in
Unfolded sheet
max
1800 mm
70 7/8 in
Dimensions & weight
Length **
23.6 m
77 ft
Width
6.45 m
21 ft
Height
3.43 m
11 ft
Net weight **
64000 kg
141100 lbs
Installation
Electrical connected load **
222 KVA
222 KVA
* Processed materials may vary with material property.
** The estimates are base on an example of machine composition : 4CSD+FG
